Using GitHub Apps to call the APIs

This post is associated with a GitHub repository.

https://github.com/Link-/github-app-bash

TLDR; Using GitHub Apps to call GitHub’s REST and GraphQL APIs

If you’re a GitHub power user, or an enterprise administrator, or you just had to set up some automation or integration you had to use of the REST or GraphQL APIs in a way or another.

The majority of GitHub’s API resources require authentication. There are 2 methods of authentication:

  1. Basic authentication
  2. Personal Access Token (PAT)
  3. OAuth2 tokens:
    1. OAuth App access token
    2. GitHub App installation access token

We’re going to ignore basic authentication in this post and will focus on the Personal Access Tokens and OAuth tokens. This table describes the features of each token type:

Feature Personal Access Token (PAT) OAuth App Access Token GitHub App Installation Access Token
Granular / customizable access scope and permissions yes no yes
Access scope is bound by user permissions yes yes no
Self expire (after a period of time) no yes yes
Configurable expiration duration no no no
Generated via APIs no yes yes
Can be revoked on demand no yes yes
Requires installation no no yes
Bound by API rate limits yes yes yes
Impersonate authenticated account yes yes yes
Act as the app (do not impersonate an authenticated account) no no yes

Of course there are many more distinctions but for the purposes of this post, I’ll be focusing on those only.

When to use what?

I really like this visual from the official docs for determining which method is the best:

when to use each authentication method

Authenticating with GitHub Apps

I personally really like GitHub Apps as they can be used for both user to server and server to server integrations. I believe they are the future of integrations with GitHub, their main problem is that they’re not very easy to set up and play with.

However, once you have a good understand of the basic concepts, you’ll also start liking them as I do.

To work with GitHub Apps there are 3 things to do:

  1. Create a GitHub App
  2. Install the GitHub App on a repository, an organization or user account
  3. Generate an installation access token

I did not link the 3rd step to the docs because I’ll be describing the process of generating an installation access token here.

1. Create JWT

  1. This step requires jwt-cli or anything else that provides similar functionality.

  2. Once you have jwt-cli setup and ready, let’s do a quick sanity check:

     # Check jwt-cli version
     jwt --version

  3. Next, we need to create a private key for the GitHub App we created by following this guide.

  4. Do you have the PEM file downloaded? Let’s do another quick sanity check. We print out the first 1 to 10 characters of each line of the PEM file to check its content while avoiding exposing it.

     # Print the first 1 to 10 characters of each line of the PEM file
     cat ~/Downloads/our-github-app-private-key.pem | cut -c 1-10

     -----BEGIN
     MIIEowIBAA
     EWvM/c5vO3
     buxJtiE4lQ
     MBOY8KgDdX
     ZNMczYnLs/
     McDFdqSyC/
     IoSt9tfj0A
     5f6WTf9zeO
     NErdZLLaub
     SQMznabRo8
     owAApBGu+M
     G1fsHQECgY
     OXWnyxqKUN
     aT3g4jEG68
     BL+5WP/SKx
     0aSKYMaic3
     m+MOxumCD7
     YtwOhGHjO9
     GV7iByqFOn
     5V2jMNlC/x
     8v6Z1u/bHr
     egKQtvdDX7
     YcuZVQKBgE
     J6N6fn+4fa
     +N7HgFtEKA
     -----END R

  5. Now we need to convert the PEM file to DER (just the binary form of the PEM file) format:

     # Convert PEM to DER encoded key
     openssl rsa -outform der -in our-github-app-private-key.pem -out our-github-app-key-DER.key

     # You should have a new file in your directory called our-github-app-key-DER.key

  6. Let’s generate a JWT (JSON web token) which we will use to authenticate the subsequent API requests:

     # Will generate a JWT with the following properties:
     # -A | algorithm: RS256
     # -e | expiry time: 10 minutes
     # -i | issuer: GitHub App ID (you can get it from the settings page of the app)
     # -P | payload: JWT payload: https://jwt.io/introduction
     # -S | secret / key: The DER key for our GitHub App

     # This assumes you're using bash as a shell, if you're using something else you need to adapt the command to your shell

     APP_JWT=$(jwt encode \
                   -A RS256 \
                   -e $(( $(date +%s) + $(( 10 * 60 )) )) \
                   -i <APP_ID> \
                   -P iat=$(( $(date +%s) - 60 )) \
                   -S @our-github-app-key-DER.key)

     mbiCIce4NjZxIYe6hKqFxeO_myB0X-cSCVrtd6KXLPXRp94rvj-hhu4iCRLcfX-jel76_-TJErVCGxCyUhElAE6gPG85MyqN97U7C2EFN8dIbU47zqj9wXX3917NYfiGET99LYR_r7_yJ6oQadJVy7Szggj.Dt0g6T6VASyv_feNBYidlfN2ZsSlQt1niPn5Zbi8ab14Jpw9zc6XLWJ6BI-85rzfhoDpaCwnsMNebnUNQodGq0aQuOI2pHzrhTJyShqsehcCPl1PZZHSFixxNGmG4afIxxXigWNf2NIJF-D_z3iKObW_UUYeDiFDVmcDXaJW80UZfZlvz3DjfKxBiGJeiynOz2yMnX3uz99rLUg-nh6Z6I9LeuKMkqjpB3L2dTS1MbrHWvnx64OCKdJ-TlBoYYJR5K5IO.YBiH4fg2t7z-jGOhZ66M


2. Get list of installations

  1. We will now use the JWT we generated in the previous step to fetch the list of installations of our app. Remember, a GitHub app can be installed for many repositories, organizations or users.

     curl \
       -H "Authorization: Bearer ""${APP_JWT}" \
       -H "Accept: application/vnd.github.v3+json" \
       https://api.github.com/app/installations

     [
       {
         "id": 16999999,
         "account": {
           "login": "RANDOM_ORG_NAME 1",
           "id": 80999999,
           ...
         },
         "repository_selection": "all",
         ...
         "permissions": {
           ...
         },
         "events": [
           ...
         ],
         "created_at": "2021-05-17T09:33:39.000Z",
         "updated_at": "2021-05-20T17:58:35.000Z",
         "single_file_name": null,
         "has_multiple_single_files": false,
         "single_file_paths": [
           ...
         ],
         "suspended_by": null,
         "suspended_at": null
       },
       {
         "id": 17999999,
         "account": {
           "login": "RANDOM_ORG_NAME 2",
           "id": 81999999,
           ...
         },
         "repository_selection": "all",
         ...
         "permissions": {
           ...
         },
         "events": [
           ...
         ],
         "created_at": "2021-05-17T09:33:39.000Z",
         "updated_at": "2021-05-20T17:58:35.000Z",
         "single_file_name": null,
         "has_multiple_single_files": false,
         "single_file_paths": [
           ...
         ],
         "suspended_by": null,
         "suspended_at": null
       }
     ]

  2. Copy the installation id for the repository, organization or user you want to use:

     // First installation
     {
       "id": 16999999,   // <- This is the installation id
       "account": {
         "login": "RANDOM_ORG_NAME 1",
         ...

     // Second installation
     {
       "id": 17999999,   // <- This is the installation id
       "account": {
         "login": "RANDOM_ORG_NAME 2",
         ...


3. Create an installation access token

Generate the installation access token

# Put the installation id in a variable
APP_INSTALLATION_ID=16985135

# Generate an access token
curl -s \
    -X POST \
    -H "Authorization: Bearer ""${APP_JWT}" \
    -H "Accept: application/vnd.github.v3+json" \
    https://api.github.com/app/installations/"${APP_INSTALLATION_ID}"/access_tokens

{
  "token": "ghs_akiE7tSItG8SeH5M8gGn05JhAsbcL4uh2vWB0",
  "expires_at": "2021-07-07T19:19:36Z",
  "permissions": {
    ...
  },
  "repository_selection": "all"
}

4. Call REST / GraphQL APIs with installation access token

With the token generated in the previous step, call the resources within your permissions scope as such:

APP_TOKEN="ghs_akiE7tSItG8SeH5M8gGn05JhAsbcL4uh2vWB0"

curl -s \
      -H "Authorization: token ""${APP_TOKEN}" \
      -H "Accept: application/vnd.github.v3+json" \
      https://api.github.com/orgs/<ORG_NAME>/repos

[
  {
    "id": 432071637,
    "node_id": "jGDnD=zOa9Y3lMQNExRMlcXkzMzJwMvc",
    "name": "random-repo-name",
    "full_name": "ORGNAME/random-repo-name",
    "private": true,
    "owner": {
      ...
    },
    "html_url": "...",
    "description": "...",
    "fork": false,
    ...
  }
]

ghtoken to the rescue

That’s quite a lengthy process, right? Yeah, I thought so. It is also slightly intimidating. That’s why I create ghtoken. A simple bash utility that encapsulates all the above and allows you to generate / revoke installation access tokens very quickly.

How it works?

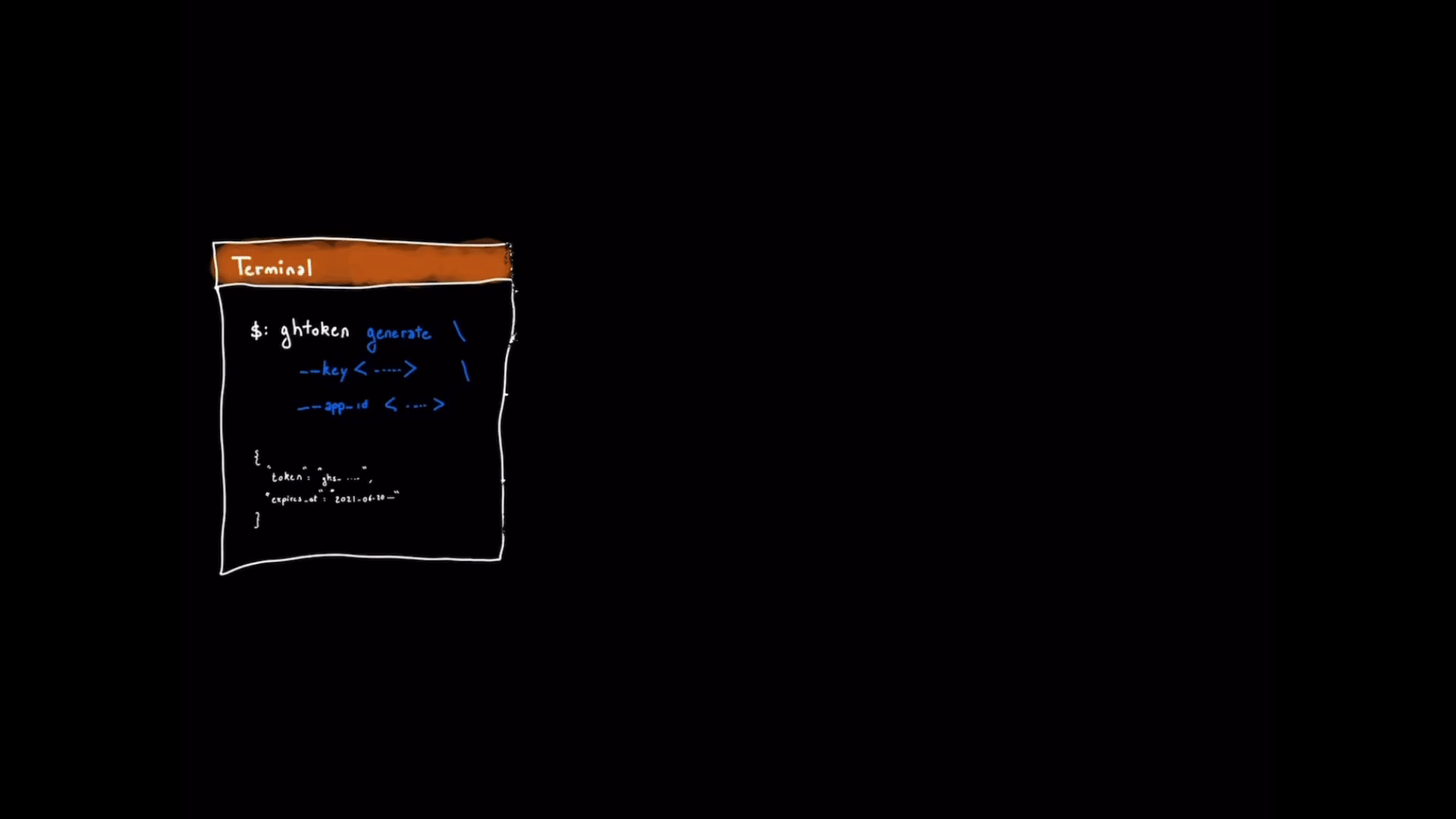

This gif illustrates how ghtoken works, it’s the steps as described before with a bunch of boilerplate code to handle different scenarios:

ghtoken process description

Basic flows

1. Run ghtoken assuming jwt-cli is already installed

$ ghtoken generate \
    --key ./.keys/private-key.pem \
    --app_id 1122334 \
    | jq

{
  "token": "ghs_g7___MlQiHCYI__________7j1IY2thKXF",
  "expires_at": "2021-04-28T15:53:44Z"
}

2. Run ghtoken and install jwt-cli

# Assumed starting point
.
├── .keys
│   └── private-key.pem
├── README.md
└── ghtoken

1 directory, 3 files

# Run ghtoken and add --install_jwt_cli
$ ghtoken generate \
    --key ./.keys/private-key.pem \
    --app_id 1122334 \
    --install_jwt_cli \
    | jq

{
  "token": "ghs_8Joht_______________bLCMS___M0EPOhJ",
  "expires_at": "2021-04-28T15:55:32Z"
}

# jwt-cli will be downloaded in the same directory
.
├── .keys
│   └── private-repo-checkout.2021-04-22.private-key.pem
├── README.md
├── ghtoken
└── jwt

3. Revoke an installation access token

# Run ghtoken with the revoke command
$ ghtoken revoke \
    --token "v1.bb1___168d_____________1202bb8753b133919"
    --hostname "github.example.com"

204: Token revoked successfully

Where can I find ghtoken?

ghtoken is hosted and maintained in this repository: https://github.com/Link-/github-app-bash

Disclaimer: This is not a GitHub endorsed technical advice or recommendation. Use it at your own risk.
